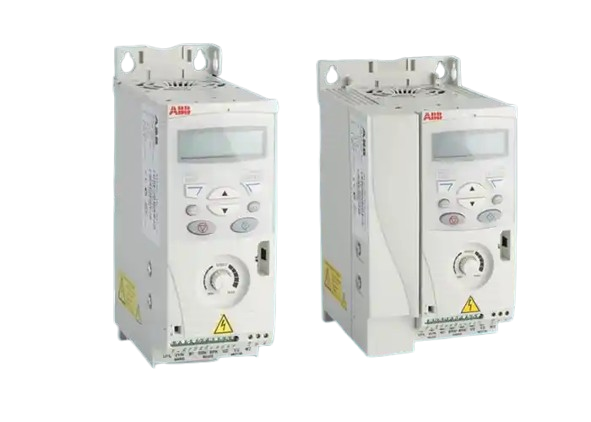

ABB ACS 150
The ABB ACS150 Micro Drive is a compact and efficient Variable Frequency Drive (VFD) designed to deliver reliable motor control for a wide range of light industrial applications. Supporting both single-phase and three-phase power supplies, the ACS150 combines essential drive features with simple operation, making it an excellent choice for machine builders and OEMs looking for a cost-effective motor control solution.
Product Overview
Engineered for dependable everyday performance, the ACS150 offers an extensive range of built-in features that reduce installation time and eliminate the need for additional accessories. Its compact footprint, integrated user interface, and advanced motor control capabilities ensure smooth operation across various industrial applications.
Key Highlights
Power Range
0.37 kW to 4 kW (0.5 HP to 5 HP)
Power Supply
Available in both Single Phase and Three Phase models.
Motor Control
Reliable Scalar Control for smooth motor operation.
User Interface
Integrated control panel with built-in potentiometer for easy adjustments.
Protection
Built-in EMC Filter and Brake Chopper for enhanced performance.
Configuration
Supports optional Flash Drop tool for fast drive configuration.
Main Features
- Power range from 0.37 kW to 4 kW (0.5 HP to 5 HP).
- Available for both single-phase and three-phase power supplies.
- Compact IP20 enclosure for panel mounting applications.
- Reliable Scalar Control for efficient motor operation.
- Integrated user interface with built-in potentiometer.
- Built-in Brake Chopper as standard.
- Integrated EMC Filter suitable for second environment installations.
- Optional Flash Drop configuration tool for rapid setup of unpowered drives.
- Simple commissioning and user-friendly operation.
- Compact design requiring minimal installation space.
Axis Control Panel
The integrated Axis Control Panel provides convenient access to drive settings, parameter adjustments, diagnostics, and monitoring. The built-in potentiometer enables quick speed adjustments without requiring external control devices.
Technical Specifications
| Product | ABB ACS150 Micro Drive |
| Power Range | 0.37 kW – 4 kW (0.5 HP – 5 HP) |
| Power Supply | Single Phase & Three Phase |
| Enclosure | IP20 |
| Motor Control | Scalar Control |
| User Interface | Integrated Control Panel with Potentiometer |
| Brake Chopper | Built-in |
| EMC Filter | Built-in (2nd Environment) |
| Configuration Tool | Optional Flash Drop |
Available Models
| Type Number | Rating |
|---|---|
| ACS150-01E-02A4-2 | 0.37 kW / 0.5 HP – 1 Phase |
| ACS150-01E-04A7-2 | 0.75 kW / 1 HP – 1 Phase |
| ACS150-01E-06A7-2 | 1.1 kW / 1.5 HP – 1 Phase |
| ACS150-01E-07A5-2 | 1.5 kW / 2 HP – 1 Phase |
| ACS150-01E-09A8-2 | 2.2 kW / 3 HP – 1 Phase |
| ACS150-03E-01A2-4 | 0.37 kW / 0.5 HP – 3 Phase |
| ACS150-03E-01A9-4 | 0.55 kW / 0.75 HP – 3 Phase |
| ACS150-03E-02A4-4 | 0.75 kW / 1 HP – 3 Phase |
| ACS150-03E-03A3-4 | 1.1 kW / 1.5 HP – 3 Phase |
| ACS150-03E-04A1-4 | 1.5 kW / 2 HP – 3 Phase |
| ACS150-03E-05A6-4 | 2.2 kW / 3 HP – 3 Phase |
| ACS150-03E-07A3-4 | 3 kW / 4 HP – 3 Phase |
| ACS150-03E-08A8-4 | 4 kW / 5 HP – 3 Phase |
