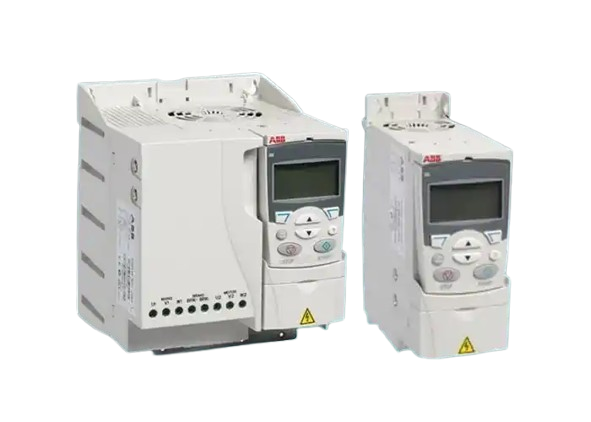

ABB ACS 310
The ABB ACS310 General Purpose Drive is specifically designed for variable torque applications such as pumps and fans. Engineered to optimize energy efficiency and process control, it features intelligent pump and fan functions, built-in PID controllers, and advanced protection capabilities. The ACS310 is an ideal solution for applications requiring reliable performance, reduced operating costs, and simplified maintenance.
Product Overview
Designed for HVAC systems, water management, and industrial pumping applications, the ACS310 provides efficient motor control with intelligent automation features. Its built-in Pump and Fan Control (PFC) automatically adjusts motor performance according to system demand, ensuring consistent operation while minimizing energy consumption.
Key Highlights
Power Range
0.37 kW to 22 kW (0.5 HP to 30 HP).
Supply Voltage
Three-phase, 380–480 V (±10%).
Built-in PID Control
Automatically regulates pressure, flow, and other process variables.
Pump & Fan Control
Integrated PFC function optimizes system performance based on demand.
Preventive Protection
Includes pipe cleaning and other pre-programmed maintenance functions.
Easy Configuration
Compatible with assistant control panels and Flash Drop configuration tool.
Main Features
- Dedicated drive for variable torque applications.
- Power range from 0.37 kW to 22 kW (0.5 HP to 30 HP).
- Three-phase 380–480 V power supply.
- Built-in PID controllers for precise process regulation.
- Pump and Fan Control (PFC) for automatic performance optimization.
- Responds dynamically to pressure, flow, and other external process inputs.
- Integrated pipe cleaning function for preventive maintenance.
- User-friendly commissioning with Basic and Assistant control panels.
- Supports Flash Drop tool for rapid drive configuration.
- Expandable connectivity through Ethernet adapter and relay output module.
- Compatible with Drive Window Light 2 PC software for monitoring and diagnostics.
Axis Control Panel
The ACS310 supports both Basic and Assistant Control Panels, providing convenient access to parameter settings, diagnostics, and real-time monitoring. The optional Flash Drop tool enables quick offline configuration, reducing installation and commissioning time.
Typical Applications
Booster Pumps
Irrigation Systems
Level Control
Centrifugal Fans
Available Options
- Basic Control Panel
- Assistant Control Panel
- Flash Drop Tool for fast cold configuration
- MREL-01 Relay Output Extension Module
- SREA-01 Ethernet Adapter
- Drive Window Light 2 PC Tool
Technical Specifications
| Product | ABB ACS310 General Purpose Drive |
| Power Range | 0.37 kW – 22 kW (0.5 HP – 30 HP) |
| Supply Voltage | 3-Phase, 380–480 V (±10%) |
| Control Function | Built-in PID Controller & Pump/Fan Control (PFC) |
| Protection | Pre-programmed Pipe Cleaning Function |
| Configuration | Basic & Assistant Control Panels, Flash Drop Tool |
| Optional Communication | Ethernet Adapter (SREA-01) |
Available Models
| Type Number | Rating |
|---|---|
| ACS310-03E-01A3-4 | 0.37 kW / 0.5 HP – 3 Phase |
| ACS310-03E-02A1-4 | 0.55 kW / 0.75 HP – 3 Phase |
| ACS310-03E-02A6-4 | 0.75 kW / 1 HP – 3 Phase |
| ACS310-03E-03A6-4 | 1.1 kW / 1.5 HP – 3 Phase |
| ACS310-03E-04A5-4 | 1.5 kW / 2 HP – 3 Phase |
| ACS310-03E-06A2-4 | 2.2 kW / 3 HP – 3 Phase |
| ACS310-03E-08A0-4 | 3 kW / 4 HP – 3 Phase |
| ACS310-03E-09A7-4 | 4 kW / 5 HP – 3 Phase |
| ACS310-03E-13A8-4 | 5.5 kW / 7.5 HP – 3 Phase |
| ACS310-03E-17A2-4 | 7.5 kW / 10 HP – 3 Phase |
| ACS310-03E-25A4-4 | 11 kW / 15 HP – 3 Phase |
| ACS310-03E-34A1-4 | 15 kW / 20 HP – 3 Phase |
| ACS310-03E-41A8-4 | 18.5 kW / 25 HP – 3 Phase |
| ACS310-03E-48A4-4 | 22 kW / 30 HP – 3 Phase |
