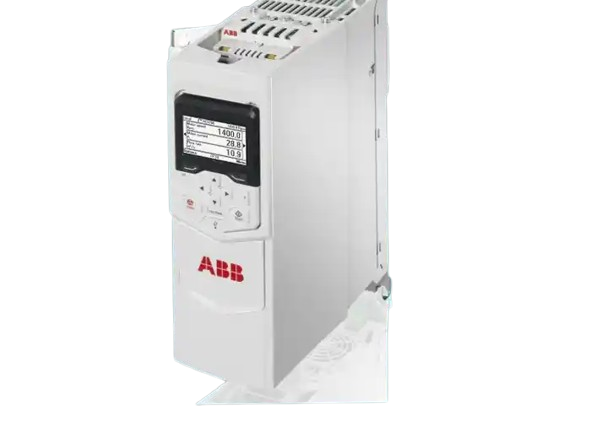

ABB ACS880-M04
The ABB ACS880-M04 Machinery Drive is a high-performance Variable Frequency Drive (VFD) developed for advanced machine-building applications requiring precision, flexibility, and dependable operation. As part of ABB’s all-compatible drives portfolio, it provides seamless integration, simplified commissioning, and scalable motor control solutions for a wide variety of industrial machinery.
Product Overview
Designed to deliver exceptional performance in demanding machinery applications, the ACS880-M04 combines advanced control technology with flexible connectivity and user-friendly operation. Its common drive architecture allows effortless scalability across ABB’s all-compatible drive range, making it ideal for both standalone machines and integrated automation systems.
Key Highlights
Power Range
0.37 kW to 45 kW for a wide range of machinery applications.
Easy Installation
Compact design enables quick installation and simplified panel integration.
Adaptable Performance
Optimized motor control for various machine types and operating conditions.
Fast Commissioning
Easy setup, diagnostics, and parameter management through ABB’s intuitive interface.
Scalable Architecture
Compatible with other ABB all-compatible drives including ACS380 and ACS880 series.
Common User Experience
Shared user interfaces and accessories reduce training and simplify operation.
Main Features
- Power range from 0.37 kW to 45 kW.
- Designed for demanding machinery applications.
- Simple installation and compact construction.
- Excellent adaptability for various machine configurations.
- Fast commissioning with built-in diagnostics.
- Supports ABB’s common all-compatible drive platform.
- Scalable to ACS380 machinery drives and ACS880 industrial drives.
- Common user interface across ABB drive families.
- Shared accessories and options simplify maintenance and training.
- Reliable operation with advanced motor control technology.
Axis Control Panel
The integrated Axis Control Panel provides a simple and intuitive interface for commissioning, monitoring, diagnostics, and parameter adjustments. Operators benefit from a consistent user experience across ABB’s all-compatible drive portfolio, reducing training time and improving operational efficiency.
Typical Applications
Material Handling
Wire Drawing
Cranes
Winders
Cutters
Industrial Machinery
Technical Specifications
| Product | ABB ACS880-M04 Machinery Drive |
| Power Range | 0.37 kW – 45 kW |
| Drive Family | ABB All-Compatible Drives Portfolio |
| User Interface | Axis Control Panel |
| Installation | Compact & Easy Panel Integration |
| Diagnostics | Built-in Commissioning & Diagnostic Functions |
| Compatibility | Scalable with ACS380 & ACS880 Drive Series |
| Applications | Machinery & Motion Control Applications |
Available Models
| Type Number | Rating |
|---|---|
| ACS880-M04-03A0-5 | 1.1 kW – 3 Phase |
| ACS880-M04-03A6-5 | 1.5 kW – 3 Phase |
| ACS880-M04-04A8-5 | 2.2 kW – 3 Phase |
| ACS880-M04-06A0-5 | 2.2 kW – 3 Phase |
| ACS880-M04-08A0-5 | 3 kW – 3 Phase |
| ACS880-M04-010A-5 | 4 kW – 3 Phase |
| ACS880-M04-014A-5 | 5.5 kW – 3 Phase |
| ACS880-M04-018A-5 | 7.5 kW – 3 Phase |
| ACS880-M04-025A-5 | 11 kW – 3 Phase |
| ACS880-M04-030A-5 | 15 kW – 3 Phase |
| ACS880-M04-035A-5 | 18.5 kW – 3 Phase |
| ACS880-M04-044A-5 | 22 kW – 3 Phase |
| ACS880-M04-050A-5 | 22 kW – 3 Phase |
| ACS880-M04-061A-5 | 30 kW – 3 Phase |
| ACS880-M04-078A-5 | 37 kW – 3 Phase |
| ACS880-M04-094A-5 | 45 kW – 3 Phase |
