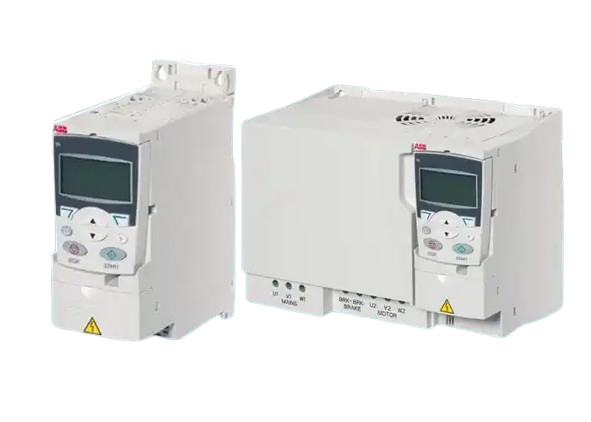

ABB ACS 355
The ABB ACS355 Micro Drive is a high-performance Variable Frequency Drive (VFD) specifically designed for original equipment manufacturers (OEMs) and panel builders. With advanced motor control, flexible communication options, and a compact design, the ACS355 delivers reliable performance across a wide range of industrial machinery while simplifying installation and commissioning.
Product Overview
Designed to meet the demands of modern machine applications, the ACS355 offers precise motor control, easy configuration, and excellent connectivity. Its compact cabinet-friendly design, built-in braking capabilities, and versatile programming functions make it an ideal choice for machine automation and industrial process control.
Key Highlights
Power Range
0.37 kW to 22 kW (0.5 HP to 30 HP)
Optimized Cabinet Design
Compact dimensions help save installation space and reduce panel wiring time.
Flexible Connectivity
Supports a wide range of fieldbus adapters for seamless industrial communication.
Advanced Motor Control
Vector control for both asynchronous and permanent magnet motors.
Easy Programming
Visual sequence programming with predefined application macros.
Integrated Braking
Built-in braking chopper for improved machine control.
Main Features
- Power ratings from 0.37 kW to 22 kW (0.5 HP to 30 HP).
- Ideal for OEMs and panel builders.
- Optimized cabinet design reduces installation space requirements.
- Wide range of optional fieldbus adapters for flexible connectivity.
- Vector control supports asynchronous and permanent magnet motors.
- Visual sequence programming for repeatable machine operations.
- Predefined application macros enable faster commissioning.
- Uniform IP20 enclosure dimensions simplify cabinet wiring.
- Integrated braking chopper provided as standard.
- Quick installation and user-friendly commissioning.
Axis Control Panel
The integrated Axis Control Panel provides an intuitive interface for drive setup, monitoring, diagnostics, and parameter adjustments. Its user-friendly design helps reduce commissioning time and simplifies everyday operation.
Typical Applications
Material Handling
Food & Beverage
Rubber Processing
Plastic Processing
Wood Processing
Technical Specifications
| Product | ABB ACS355 Micro Drive |
| Power Range | 0.37 kW – 22 kW (0.5 HP – 30 HP) |
| Motor Control | Vector Control |
| Motor Compatibility | Asynchronous & Permanent Magnet Motors |
| Enclosure | IP20 |
| Programming | Visual Sequence Programming & Application Macros |
| Connectivity | Supports Wide Range of Fieldbus Adapters |
| Braking Chopper | Built-in |
Available Models
| Type Number | Rating |
|---|---|
| ACS355-01E-02A4-2 | 0.37 kW / 0.5 HP – 1 Phase |
| ACS355-01E-04A7-2 | 0.75 kW / 1 HP – 1 Phase |
| ACS355-01E-06A7-2 | 1.1 kW / 1.5 HP – 1 Phase |
| ACS355-01E-07A5-2 | 1.5 kW / 2 HP – 1 Phase |
| ACS355-01E-09A8-2 | 2.2 kW / 3 HP – 1 Phase |
| ACS355-03E-01A2-4 | 0.37 kW / 0.5 HP – 3 Phase |
| ACS355-03E-01A9-4 | 0.55 kW / 0.75 HP – 3 Phase |
| ACS355-03E-02A4-4 | 0.75 kW / 1 HP – 3 Phase |
| ACS355-03E-03A3-4 | 1.1 kW / 1.5 HP – 3 Phase |
| ACS355-03E-04A1-4 | 1.5 kW / 2 HP – 3 Phase |
| ACS355-03E-05A6-4 | 2.2 kW / 3 HP – 3 Phase |
| ACS355-03E-07A3-4 | 3 kW / 4 HP – 3 Phase |
| ACS355-03E-08A8-4 | 4 kW / 5 HP – 3 Phase |
| ACS355-03E-12A5-4 | 5.5 kW / 7.5 HP – 3 Phase |
| ACS355-03E-15A6-4 | 7.5 kW / 10 HP – 3 Phase |
| ACS355-03E-23A1-4 | 11 kW / 15 HP – 3 Phase |
| ACS355-03E-31A0-4 | 15 kW / 20 HP – 3 Phase |
| ACS355-03E-38A0-4 | 18.5 kW / 25 HP – 3 Phase |
| ACS355-03E-44A0-4 | 22 kW / 30 HP – 3 Phase |
